Application Areas

Suitable for online monitoring of copper ions (and iron ions) concentration in the copper plating process. Also suitable for online monitoring of colored components' concentration in the liquid bath of other processes.

Detection Principles

Photometric Detection: By measuring the absorbance of the sample and using a predefined working curve, the concentration of the target substance in the sample can be determined.

Features

Obtain measurement values in as fast as 30 seconds.

Follows standard testing procedures of the photometric method.

Automatic quality control ensures consistently reliable data.

Supports real-time monitoring of multiple channels and parameters.

No need for analysis reagents, minimizing waste production.

Advanced applications can be achieved through process editing.

Technical Specifications

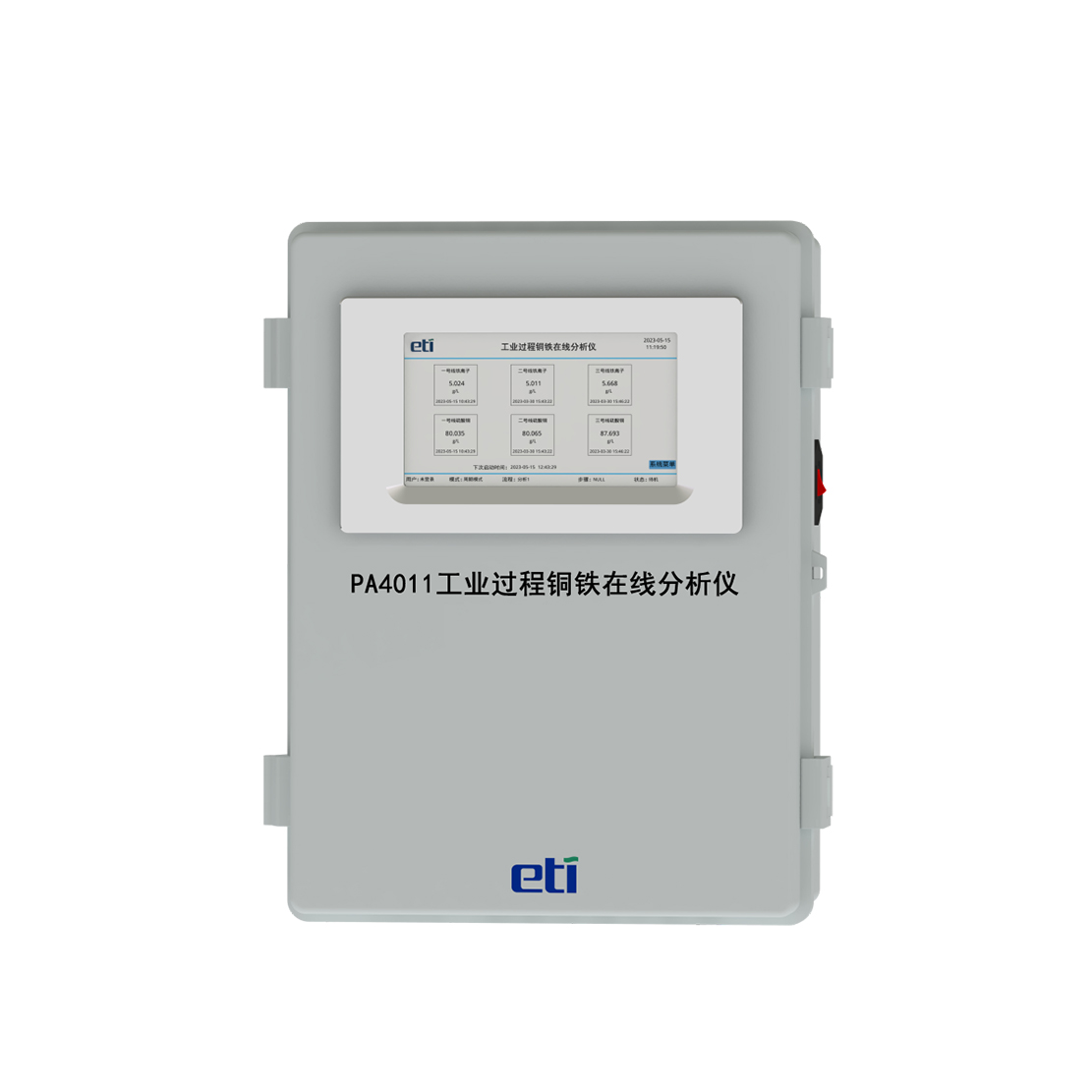

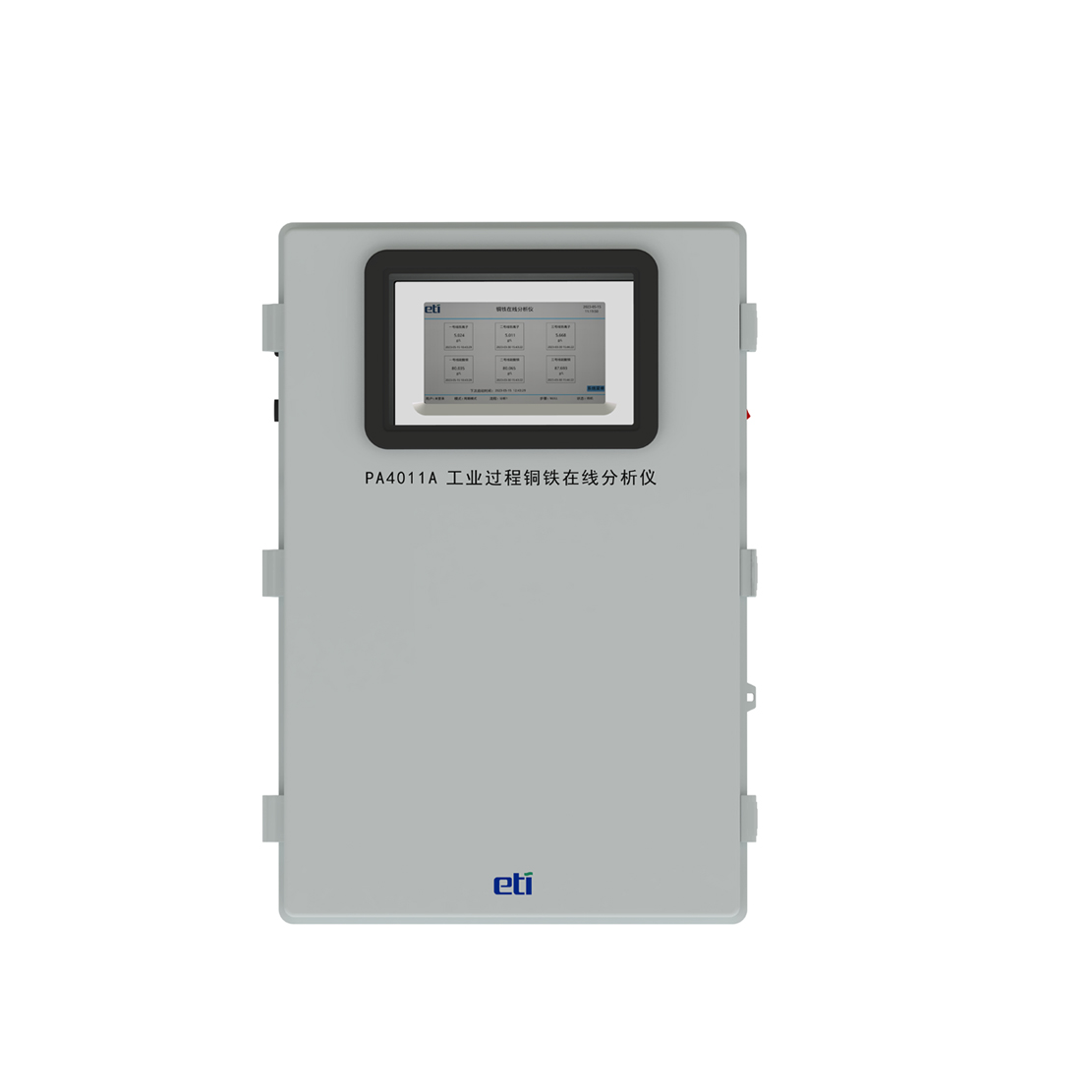

Cabinet Dimensions: Approximately 300 mm (W) × 170 mm (D) × 400 mm (H) (PA4011, excluding reagent cabinet) . Approximately 420 mm (W) × 240 mm (D) × 630 mm (H) (PA4011H, including reagent cabinet)

Installation Method: Wall-mounted

Power Requirements: 198 V ～ 242 V, 50 Hz ± 0.5 Hz, 100 W

Environmental Requirements: 15 ℃ ～ 35 ℃, RH≤95 %

Operation Mode: 7-inch full-color touch screen

Communication Modes: RS232, RS485, 4～20mA, TCP, etc.

Analysis Items: 1～2 (configured based on requirements)

Sample Channels: 1～3 (configured based on requirements)

Detection Range: Configured based on requirements.

Analysis Principle: Spectrophotometry.

Program Workflow: Supports analysis measurement, quality control, calibration, cleaning, etc. Editable workflow, supports defining more operational processes as needed.

Program Features: Supports manual, periodic, continuous, controlled running modes. Supports classification of historical data, time-based filtering, and export. Features concentration exceeding limit warnings, alarms, and alarm outputs.
