Application Areas

Suitable for a diverse range of industries, including environmental, municipal, and industrial sectors.

Detection Principle

When atoms are thermally excited, they transition from the ground state to the excited state. Upon returning to the ground state, they emit characteristic spectral lines. Due to the different energy level structures of atoms for each element, the emitted spectral lines are distinct, allowing for qualitative analysis of the sample. Additionally, based on the varying concentrations of the elements in the sample, the emission intensities differ, enabling quantitative determination of the elements.

Features

The detection system exhibits high salinity tolerance up to 3% Total Dissolved Solids (TDS).

Operates on air, eliminating the need for flammable gases and reducing operational costs.

Utilizes emission spectroscopy principles, enabling simultaneous analysis of multiple elements and fully automated online monitoring.

Wide linear detection range from parts per billion (ppb) to parts per million (ppm), with detection limits comparable to ICP-OES.

High-temperature wet digestion system ensures thorough sample dissolution, and excellent enrichment capabilities further reduce element detection limits.

CCD detector with a broad wavelength detection range from 176 nm to 780 nm allows simultaneous background and interference correction.

Modular design for easy operation and maintenance; integrated torch design eliminates the cumbersome connection of torch adjustment and gas pipelines.

Technical Specifications:

Detection Elements: Configurable based on requirements; supports monitoring of elements such as K, Na, Ca, Mg, Zn, Cd, Pb, Cu, Cr, As, Hg, Fe, Mn, Ni, Sb, Tl, and many others.

Detection Range: Configurable based on requirements.

Measurement Principle: Microwave-Induced Plasma Emission Spectrometer.

Analysis Time: Approximately 5 minutes (simultaneous detection of multiple elements, excluding preprocessing steps).

Measurement Modes: Periodic mode, controlled mode, hourly mode, continuous mode, manual mode.

Verification Modes: Remote verification, manual verification, automatic verification (triggered periodically or by exceeding limits).

Signal Output: RS485 / TCP.

Environmental Requirements: 15~25 ℃, RH≤95 %.

Power Requirements: 220±22 VAC, 50±0.5 Hz.

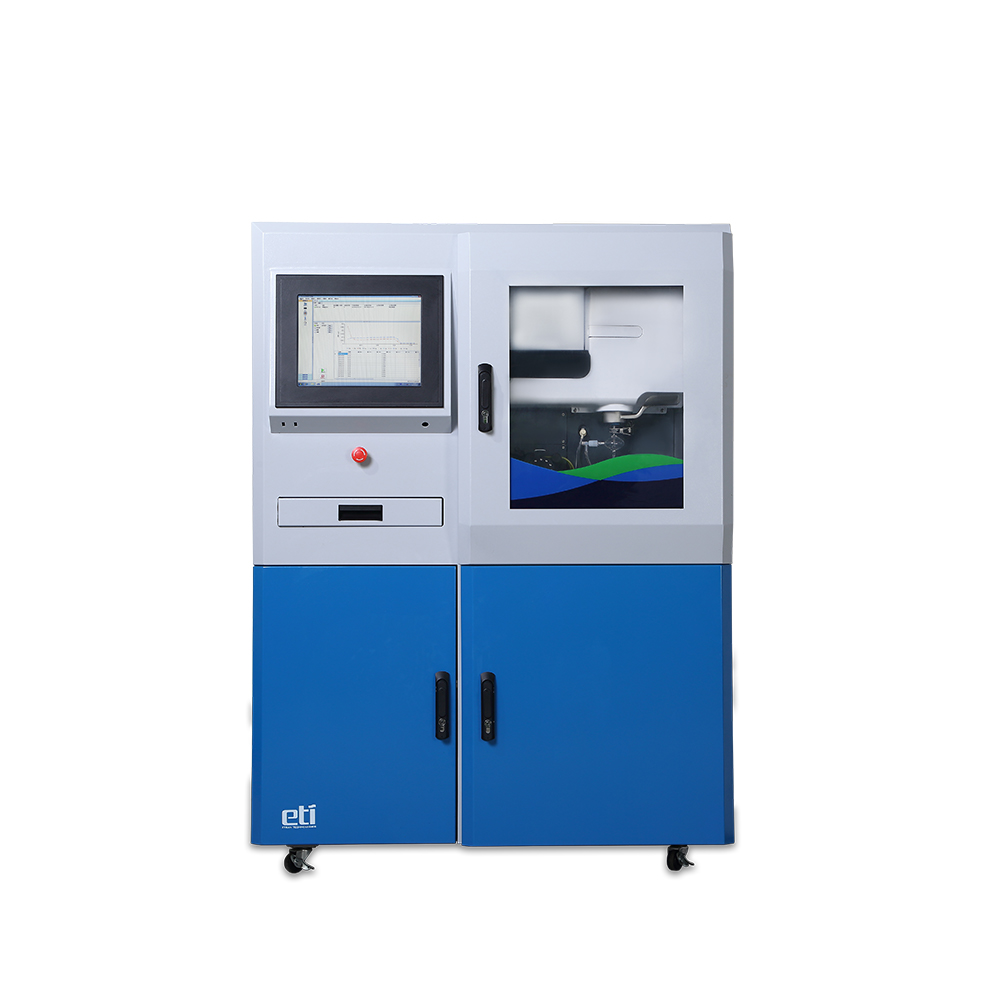

Cabinet Dimensions: Approximately 1 250 mm (W) × 850 mm (D) × 1 600 mm (H).
