Detection Parameters

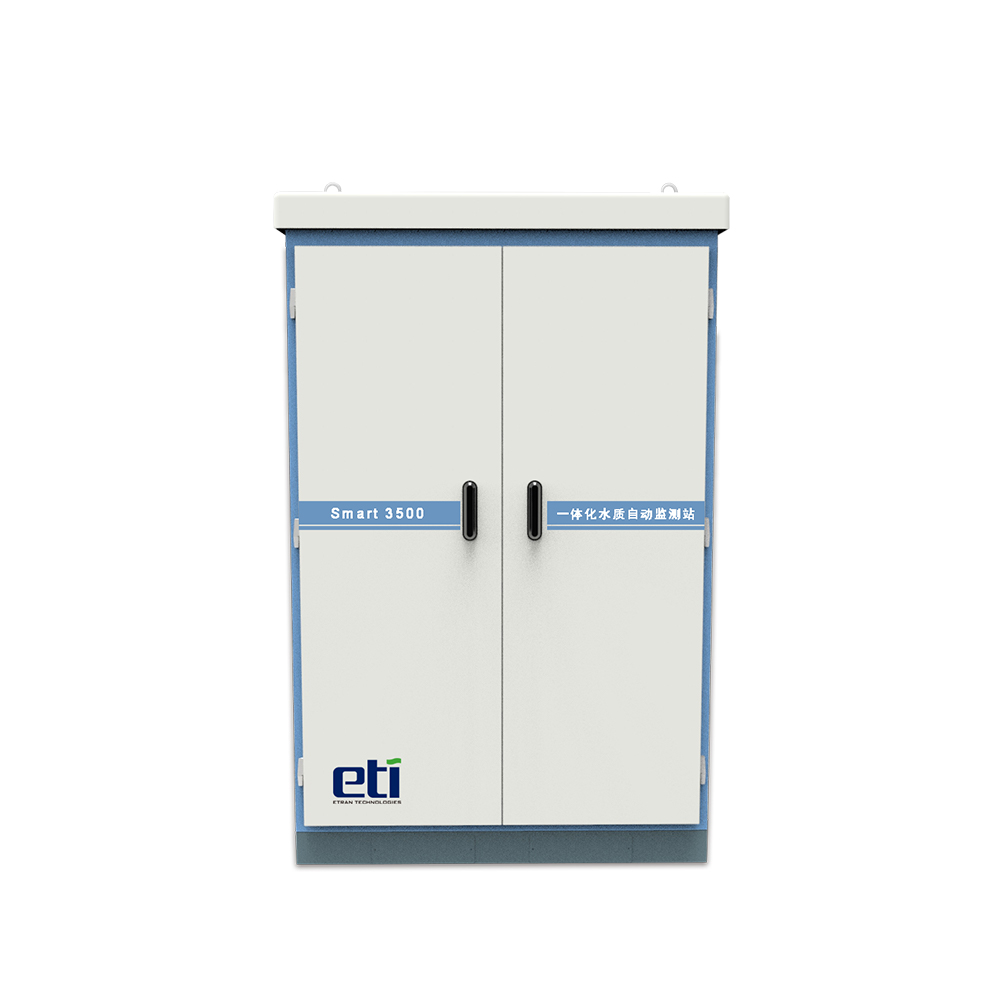

The Smart 3500 Integrated Water Quality Automatic Monitoring Station is configurable based on specific requirements and offers a selection of parameters including pH, turbidity, dissolved oxygen, conductivity, temperature, ammonia nitrogen, total phosphorus, total nitrogen, permanganate index, cyanide, nitrate, nitrite, phosphate, hexavalent chromium, lead, cadmium, copper, zinc, iron, manganese, CODCr, and more.

Application Areas

The Smart 3500 Integrated Water Quality Automatic Monitoring Station is designed for online monitoring of multiple water quality parameters in various water sources, including surface water, groundwater, water supply sources, municipal water supply, industrial wastewater, and municipal sewage.

Features

Occupies less than 1 square meter, no need for land acquisition.

Overall hoisting, only requires water and electricity connection on-site for operation.

Drawer-style module installation for easy maintenance, repair, replacement, and expansion.

Equipped with national standard method analysis modules, offering a choice of over twenty parameter configurations, and comes with air conditioning for strong environmental adaptability.

Modular design for the analytical instruments, with small footprint, minimal reagent consumption, and easy maintenance. The parameters can be configured based on user requirements.

Technical Specifications

Detection Principle: Electrode Method or Spectrophotometry.

Detection Range: Configurable based on specific requirements.

Measurement Modes: Periodic mode, controlled mode, hourly mode, continuous mode, manual mode.

Verification Modes: Remote verification, manual verification, automatic verification (triggered periodically or by exceeding limits).

Signal Output: Wired transmission or wireless transmission.

Environmental Requirements: -10~55 ℃, RH≤95%.

Power Requirements: 220±22 VAC, 50±0.5 Hz.

Cabinet Dimensions: Approximately 900 mm (W) × 750 mm (D) × 1 750 mm (H).

Instrument Weight: Approximately 380 kg.
