Application Areas

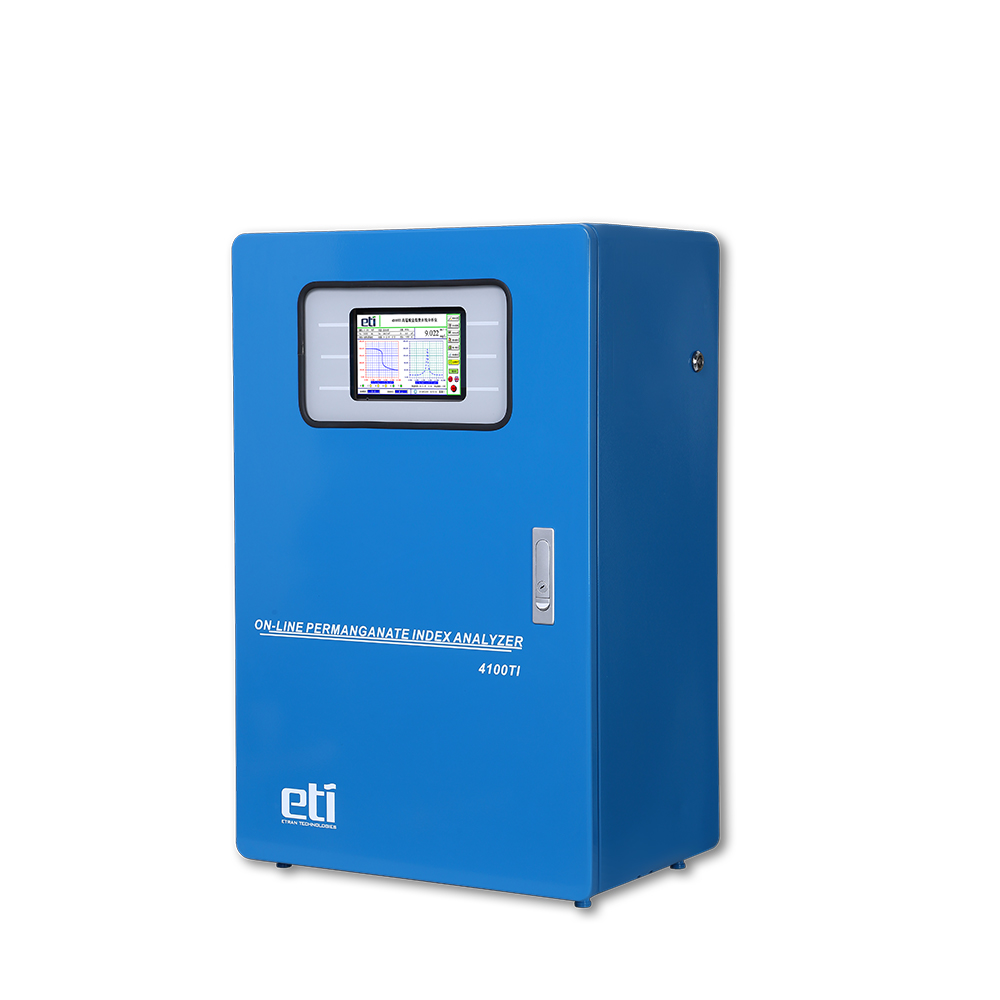

The 4100TI Permanganate Index Water Quality Online Analyzer is designed for online monitoring of permanganate index in various water sources, including surface water, groundwater, water supply sources, and municipal water supply.

Detection Principles

In this method, sulfuric acid and excess potassium permanganate solution are added to the sample. After a designated period of digestion at a set temperature, organic pollutants and reducible inorganic substances in the sample are oxidized by potassium permanganate. Subsequently, excess sodium oxalate solution is added to react with the remaining potassium permanganate. The excess sodium oxalate solution is then titrated back with potassium permanganate. The change in redox potential during the titration process is used to calculate the volume of titrant at the endpoint. The permanganate index value is then calculated based on the volume, and the result is expressed in milligrams of oxygen consumed per liter of sample.

Features

Simple flow path design for easy maintenance.

High-precision syringe pump for accurate titration processes.

Electrodes require no maintenance and has stable performance.

Measurement is not affected by color and turbidity interference.

Rapid and uniform heating with an oil bath. Quick cooling through oil replacement.

Technical Specifications

Detection Principle: Potassium permanganate digestion - redox potential titration method.

Detection Range: 0~20 mg/L, with additional selectable ranges.

Measurement Modes: Periodic mode, controlled mode, hourly mode, continuous mode, manual mode.

Verification Modes: Remote verification, manual verification, automatic verification (triggered periodically or by exceeding limits).

Signal Output: 4~20 mA, RS232 / RS485.

Environmental Requirements: 5~40 ℃, RH≤95%.

Power Requirements: 220±22 VAC, 50±0.5 Hz.

Cabinet Dimensions: Approximately 520 mm (W) × 380 mm (D) × 800 mm (H).

Instrument Weight: Approximately 45 kg (excluding reagents).
